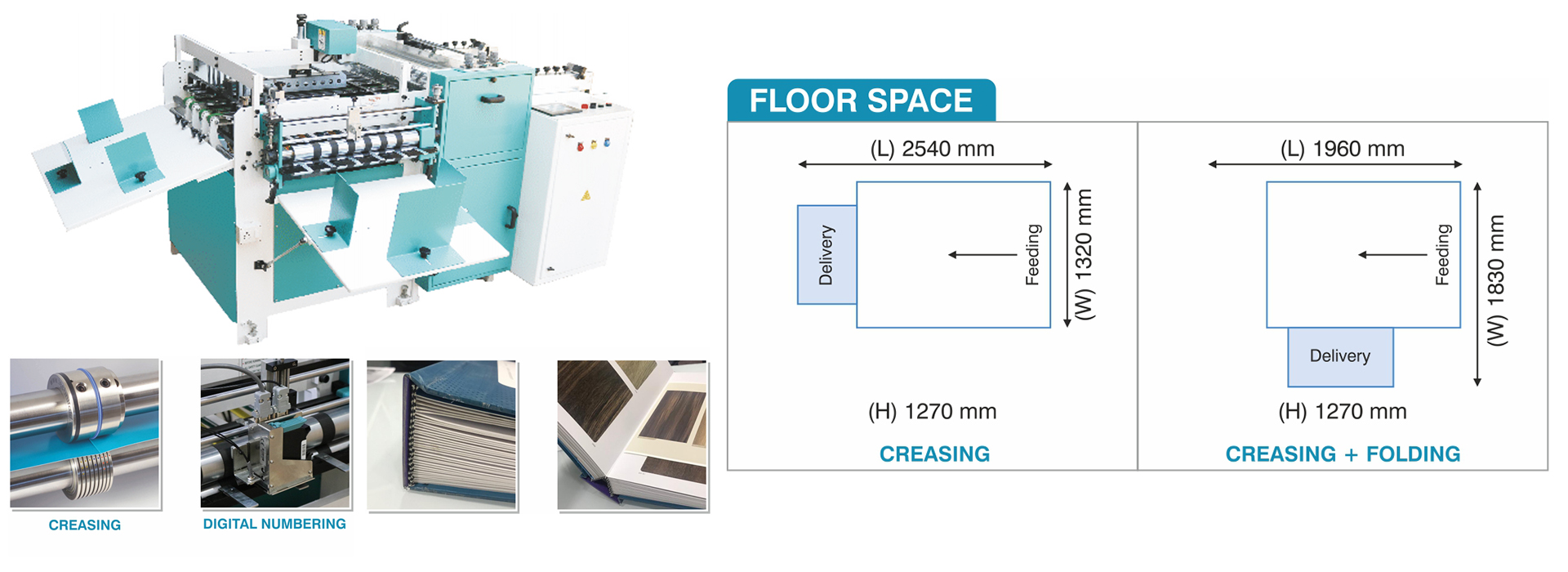

TECHNICAL SPECIFICATIONS:
|
Model |
LCPF – 2030A |
|
Maximum Paper Size |
760 mm (W) x 508 mm (H) |
|
Minimum Paper size |
440 mm (W) x 297 mm (H) |
|
Paper GSM |
180 to 350 GSM |
|
Gap B/W 2 Creases |
4 mm |
|
Cross fold |
1 Center Fold |
|
Feeder |
Continuous feeding with Automatic bottom suction + Friction |
|
Maximum Speed |
10,000 / Hr (Only Creasing) |
|
Maximum Speed |
4500 /Hr (Creasing + Folding) |
|
Counter |
Infrared with Batching Facility |
|
Power |
3 H.P., 3 Phase with Neutral ( Stable power condition is mandatory for This machine) |
|
Digital Numbering |
( Optional ) |
Note : For better result ratio of paper width to height must be 1.5
NOTE: Machine Performance & Life depends on the operator skill & handling. As our Policy is to bring in continuous improvement, illustration are not binding to details. This is general Product Catalogue not a contract (Subject to Ahmadabad Jurisdiction only).
NOTE: Electrical - Electronic Parts of the machine are not under guarantee or warranty. Proper electrical fittings & conditions are mandatory to avoid electrical problems.
